Description

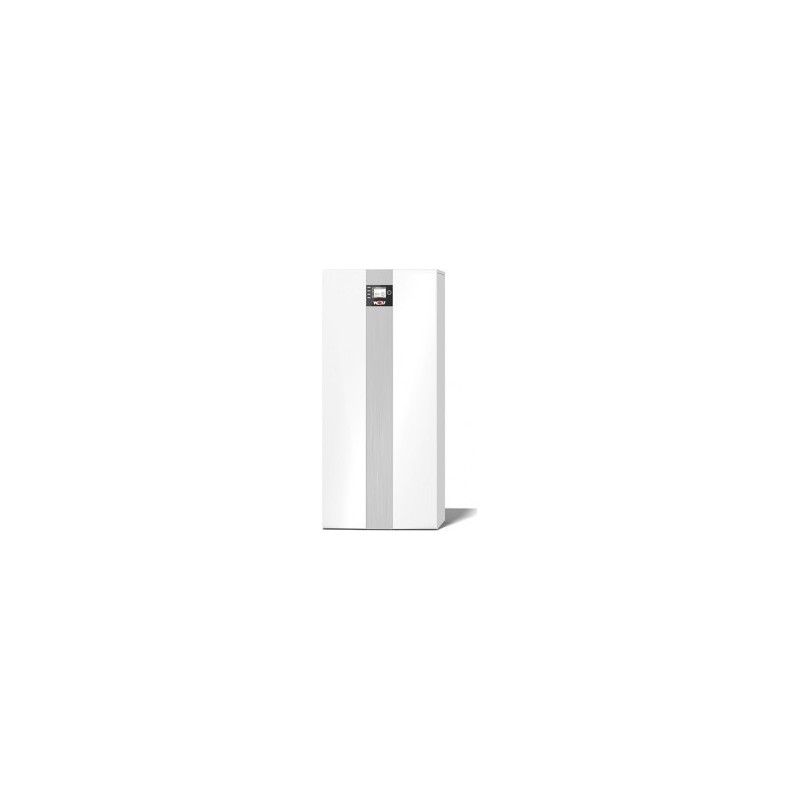

Oil condensing boiler 2 stage combustion pump with one injector.
Combustion mode: pressurized spray Blue flame.
Technology without oil preheating: extremely low energy consumption.
Intelligently controlled by the Wolf WRS-2 control system
WOLF LINK HOME can be embedded
Additional differential pressure sensor included
Annual space heating energy efficiency up to 93%, degree of efficiency Hi 105%
Technology without oil preheating: extremely low energy consumption.
Easy operation and maintenance thanks to the “integrated workbench” and easy access from the front
Extremely quiet due to additional silencer in the flue.
Durable aluminum-silicon heat exchanger
Ceramic flame tube (burner mouth)
The condensate pump can be integrated into the bottom of the boiler to save space.
Operation with standard EL fuel oil and low sulfur fuel oil (B10)
Array capability (Cascadable): Up to 4 units placed in sequence 160 KW
100% compatible with WOLF COB
specifications
Heating energy efficiency class: A
Nominal heat output at 80/60°C stages 1/2: 13.4 / 19.5 kW
Nominal heat output at 50/30°C stage 1/2: 14.1 / 20.4 kW
Exhaust/Air Pipe Diameter: 80/125mm
CE identification number: CE-0085BS0326
Dimensions HxWxD: 1290x566x605mm
Weight: 92 kg
